1 thing I would add is that doing a 1-dim DPxTPxPPxEP mesh limits the degree of EP. For example, EP=64 basically explodes world size.

1 common solution is to have the DP ranks repurposed as EP so there is no need for a separate EP dimension. The problem is now that EP=DP, which limits scalability.

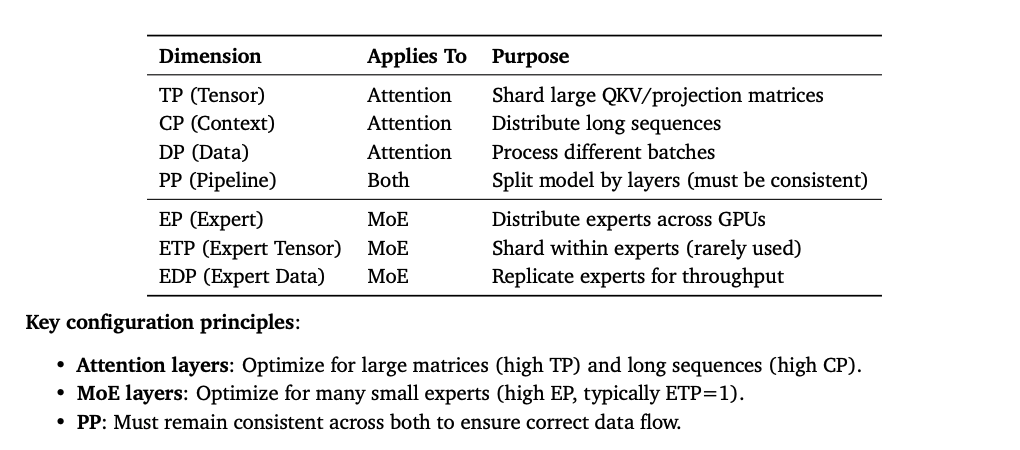

1 thing Megatron does is something called Parallel Folding, where you have 2 different meshes for Attention (DPxTPxCPxPP) and MoE (EPxETPxEDPxPP) which allows for high EP (regardless of DP) freely with separate ETP=1
